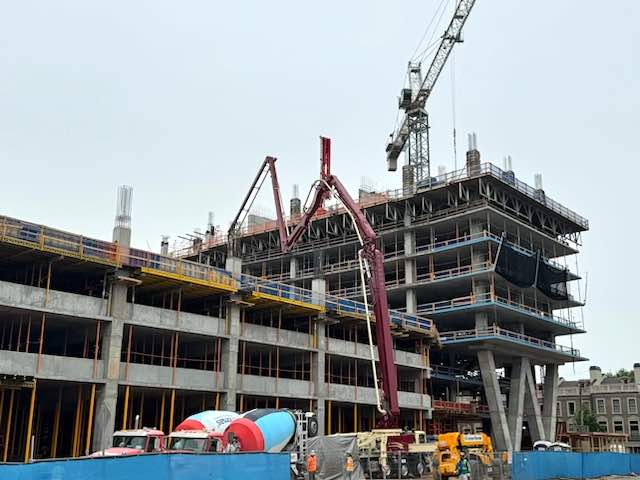

The Putzmeister 60Z Concrete Pump features an easy-to-use 6-arm RZR-folding boom offering maximum reach and a maximized horizontal and spatial working area.
Specifications
| Boom | RZR Folding | Imperial | Metric |
|---|---|---|
| Vertical reach | 194′ 3″ | 59.20 m |
| Horizontal reach | 177′ 10″ | 54.20 m |
| Reach from front of truck* | 167′ 0″ | 50.90 m |
| Reach depth | 144′ 8″ | 44.10 m |
| Unfolding height | 42′ 8″ | 13.00 m |

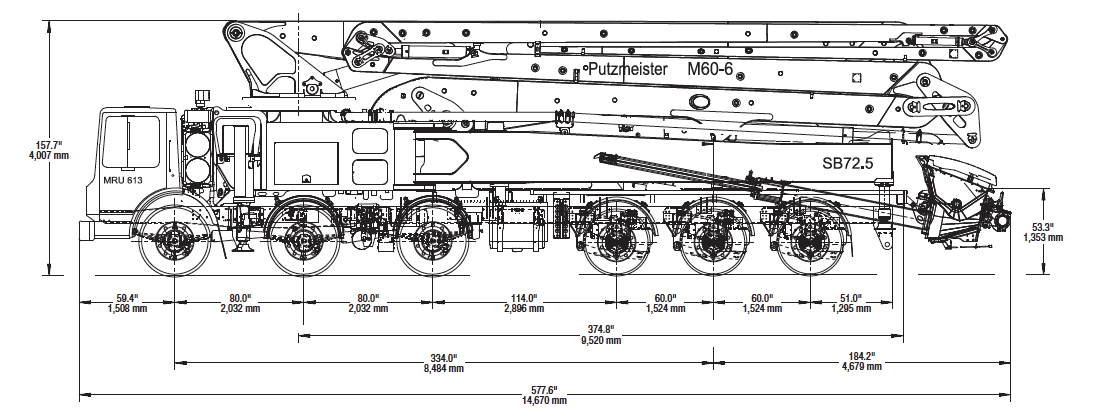

| Machine Dimensions | Imperial | Metric |
|---|---|---|
| Length | 47′ 11″ | 14.60 m |
| Width | 8′ 2″ | 2.50 m |
| Height | 13′ 1″ | 4.0 m |
| Outrigger spread L – R — front hydraulically extended out & down | 39′ 8″ | 12.10 m |
| Outrigger spread L – R — rear hydraulically swing out & extend down | 43′ 4″ | 13.20 m |
| Wheelbase | 334″ | 8.484 m |
| Weight | Imperial | Metric |
|---|---|---|
| Front axle weight | 52,488 lbs | 23,809 kg |
| Rear axle weight | 54,133 lbs | 24,555 kg |
| Approximate total weight | 106,621 lbs | 48,363 kg |

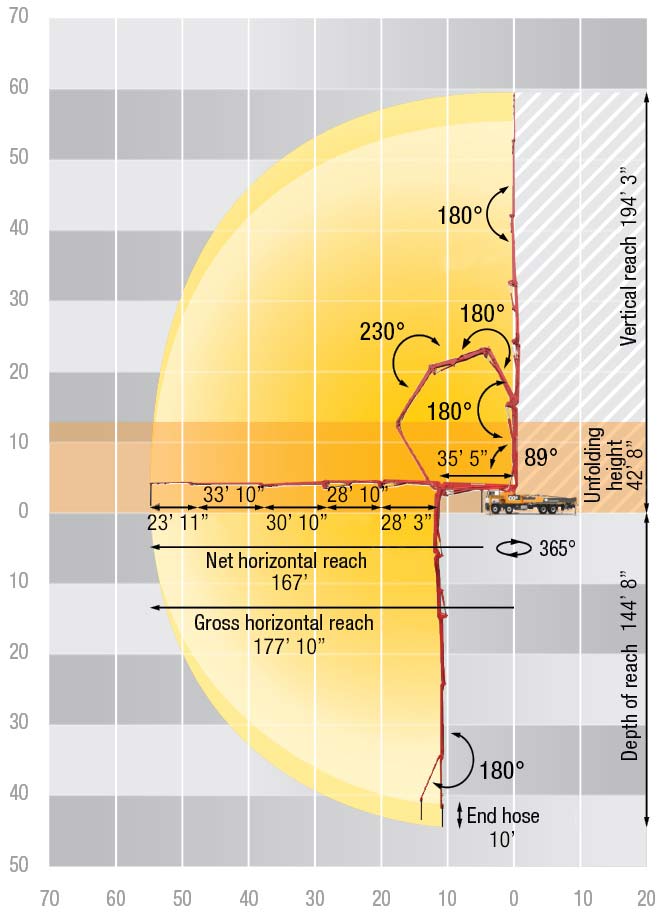

Range Diagram

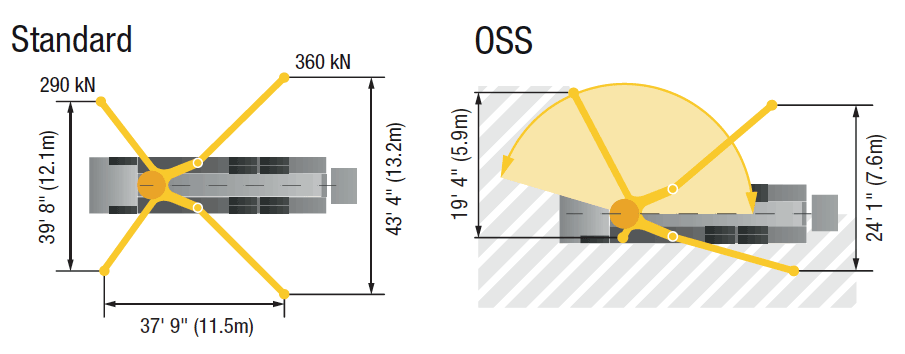

Outrigger Spread
