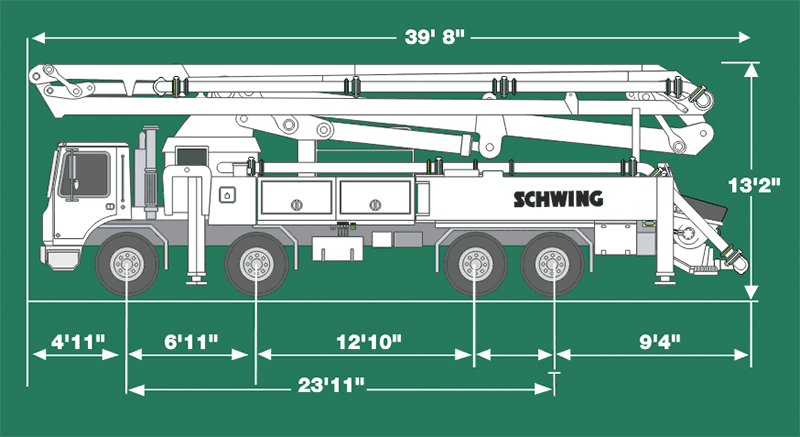

The Schwing S 47 SX Truck-Mounted Concrete Pump features a 5-Section Hyper Extension Roll & Fold placing boom with a 134′ 5″ horizontal reach.
Specifications
U.S. | Metric | |
Vertical Reach | 151′ 3″ | 46.1 m |
Horizontal Reach | 134′ 5″ | 41 m |
Below Grade Reach w/ Tip Hose | 106′ 4″ | 32.4 m |
Pipeline Diameter | 5 in | 125 mm |
Boom Type / Sections | Hyper Extension, Roll & Fold®/ 5 | |
Boom Rotation | 730 degrees | |
Unfolding Height | 32′ 2″ | 9.8 m |
Outrigger Type – Front | Super X Outriggers, Hydraulic Slewing & Jacking | |
Outrigger Type – Rear | Hydraulic Slewing & Jacking | |
Outrigger Soil Pressure w/o Dunnage (front/rear) | 696/769 psi | 48/53 bar |
Outrigger Soil Pressure w/ Dunnage (front/rear) | 98/96 psi | 6.8/6.6 bar |
Outrigger Width – Front | 29′ 4″ | 8.9 m |
Outrigger Width – Rear | 30′ 5″ | 9.3 m |
Outrigger Length | 31′ 9″ | 9.6 m |
PUMP SPECIFICATIONS- 2525H-6 120-85 MPS | ||
---|---|---|
U.S. | Metric | |
Theor. Concrete Output | 213 cu yds/h | 163 cu m/h |
Max. Pressure on Concrete | 1169 psi | 81 bar |
Max. Strokes Per Minute | 22 | |
Max. Aggregate size | 2.5 in | 63.5 mm |
Material Cylinder Diameter | 10 in | 254 mm |
Material Cylinder Stroke | 98 in | 2500 mm |
Differential Cylinder Diameter | 4.7 in | 120 mm |
Maximum Oil Flow | 158.5 gal/min | 600 l/min |
Hydraulic Circuitry Type | MPS | |
Valve Type | B Rock |
